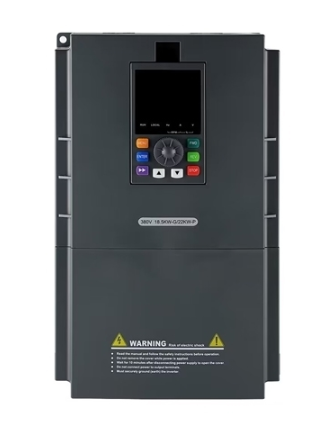

10 hp (7.5 kW) Single Phase Output VFD

10 hp (7.5 kW) VFD for sale at low cost, 45 amps, single phase 220V - 240V output for 1 phase induction motor speed control.

High performance and affordable price 10hp 7.5kW variable frequency drive, single phase output for 1 phase asynchronous motor.

GoHz single phase output VFDs work for both L-N-G motors and split phase (L1-L2, +N, G) motors.

Specification:

Basics    Model    GK3000-1S0075
Capacity    10 hp (7.5 kW)
Shipping weight    8 kg
Dimension    330*200*200 mm
I/O Feature    Rated current    45 A
Input voltage    single phase AC 220V±15%
Input frequency    47~63Hz
Output voltage    0～rated input voltage
Output frequency    V/f control: 0~500Hz
Over load capacity    150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s
Control Features    Control mode    V/f control
Operation command mode    Keypad control, Terminal control, Serial communication control
Frequency setting mode    Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
Starting torque    1 Hz/150%
Speed adjustment range    1:50
Carrier frequency    1.0-16.0kHz, automatically adjusted according to temperature and load characteristics
Frequency accuracy    Digital setting: 0.01Hz
Analog setting: Maximum frequency * 0.05%
Torque boost    Automatically torque boost; manually torque boost: 0.1%~30.0%
V/f curve    Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode    Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
DC braking    DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s
Jog operation    Jog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s
Simple PLC & multi-step speed operation    It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
Built-in PID    Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation    Keep output voltage constant automatically when input voltage fluctuating
Control Function    Common DC bus    Common DC bus for several VFDs, energy balanced automatically
Torque control    Torque control without PG
Torque limit    "Rooter" characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
Wobble frequency control    Multiple triangular-wave frequency control, special for textile
Timing/length/counting control    Timing/length/counting control function
Over-voltage & over-current stall control    Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
Fault protection function    Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
Input/output terminals    Input terminals    Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI:
AI1: 0～10V or 0/4～20mA
A12: 0～10V or 0/4～20mA
Output terminals    1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output)
2 relay output
2 analog output: 0/4~20mA or 0~10V
Communication terminals    Offer RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface    LED display    Display frequency setting, output frequency, output voltage, output current, etc.
Multifunction key    QUICK/JOG key, can be used as multifunction key
Environment    Ambient temperature    -10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃).
Humidity    90%RH or less (non-condensing)
Altitude    ≤1000M: Output rated power, ＞1000M: Output derated
Storage temperature    -20℃～60℃
Note: The single phase motor should Not be adjusted to run based on a lower frequency than 80% of its rated frequency for along time, otherwise the motor may fail.

Single phase induction motor has specific wiring requirements in connecting with GoHz single phase VFD, to enable your single phase motor running properly, please follow below instructions step by step:

Wiring instruction of removing motor capacitor
Remove capacitor of the single phase motor, connect the common terminal Z2/U2 (single phase motor has two windings) to the VFD's V phase, connect the other two windings U1/V1 & Z1 to the U & W phase of the VFD output terminals.
Power on the VFD, set P9-13=0, run the VFD and observe the current. If the current is too high, stop the VFD, set P0-15=10, P1-02=160, and run again. If the current still too high, stop the VFD and switch the motor connection of U & W phase.
GoHz VFD wiring for single phase induction motor



Wiring instruction of keeping motor capacitor
Connect single phase motor input lines (L, N) to the VFD's (V, U).
Power on the VFD, set P9-13=0, run the VFD and observe the current. If the current is too high, stop the VFD, set P0-15=10, P1-02=160, and run again. If the current still too high, stop the VFD and switch the VFD's U phase to W phase.
GoHz VFD wiring for single phase motor without disassembling capacitors



Download GoHz single phase motor wiring instructions (pdf).

Tips: Advantages of Single Phase VFD

Not only do variable frequency drive provide adjustable speed for accurate and precise control applications, but they also offer additional benefits in process control and energy savings.

Energy saving
More than 65% of electricity is consumed by industrial electric motors. Amplitude and frequency control techniques use less power to change the speed when the motor requires variable speed. So a lot of energy is being saved by these VFDs.

Closed-loop control
Even under changing load conditions and input disturbances such as voltage fluctuations, the VFD can accurately locate the motor speed by continuously comparing the reference speed.

Limit the starting current
Induction motors draw 6 to 8 times the nominal current when starting. Compared with the traditional starter, the VFD has a lower output frequency when starting, and the effect is better. Due to the lower frequency, the motor draws less current and when starting and running, the current will not exceed the rated value.
Smooth operation
provides smooth operation when starting and stopping, and also reduces thermal and mechanical stress on the motor and belt drive.
High power factor
Built-in power factor correction circuitry in the VFD DC bus reduces the need for additional power factor correction devices.
