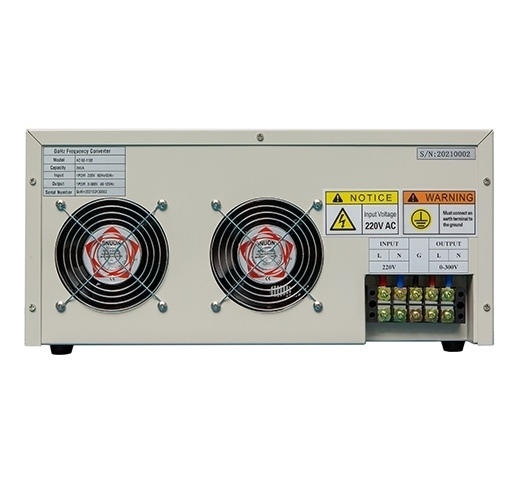

2 kVA 110V/220V 60Hz/50Hz Frequency Converter
2 kVA 110V/220V 60Hz/50Hz Frequency Converter
Couldn't load pickup availability
2 kVA 110V 60Hz to 220V 50Hz static (solid state) frequency converter with built-in step up transformer, also can change 220V 50Hz to 110V 60Hz power, changeable frequency and voltage per your request.
Specification
| Model | HZ-50-1102 | |
| Capacity | 2 kVA | |
| Dimension | Benchtop Type | 590*490*230mm |
| Cabinet Type | 550*400*670mm | |
| Weight | Benchtop Type | 49 kg |
| Cabinet Type | 60 kg | |
| Input | Voltage | 1 Phase 2 Wire: 110V/120V, 220V/230V/240V ± 10% (option *) |
| Frequency | 50 Hz, 60 Hz or 400 Hz ± 5% | |
| Output | Voltage, current | 110V Setting (Low grade): 0-150V, 16.8A |
| 220V Setting 0-300V (High grade): 0-300V, 8.4A | ||
| Load stabilization Rate | ≤±1% | |
| Frequency | 50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option. |
|
| Frequency Stability | ≤±0.01% | |
| Harmonic Distortion | Pure Sine Wave ≤2% | |
| Frequency meter | 4 digit, digital frequency meter, resolution 0.1Hz/Step | |
| Voltmeter | 4 digit, digital voltage meter, resolution 0.1V | |
| Ammeter | 4 digit, digital ammeter, resolution 0.1A | |
| Watt meter | 4 digit, digital Watt meter, resolution 0.1W | |
| Protection | With overload, short circuit, over temperature | |
| Instantaneous power failure protection and alarm device | ||
| Working Environment | Temperature | 0 - 40 deg.℃ |
| Humidity | 0 - 90% (Non condensation) | |
| Warranty | 18 months | |
* The input voltage is factory selected.
Tips: Where is frequency converter being used?
The power supply in UK is 50 Hertz 230V AC, in USA its 60 Hertz 110V AC. So, if you want to use an appliance from USA in UK, not only need to step-down voltage to 110Vac, but will have issues with the frequency. So any appliance with a motor, for example, microwave ovens, CD/DVD players, analogue clocks etc. would all respond differently to a lower frequency. In such situations, you will need a static (solid state) frequency converter. By using a static frequency converter, you can convert 220V/230V/240V 50Hz to 110V/120V 60Hz, vice versa. Adjustable output voltage and frequency function allows you converting fixed voltage & frequency power course to conform with your appliances.
