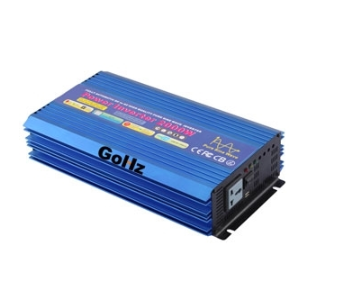

2000 Watt Pure Sine Wave Inverter
2000 Watt Pure Sine Wave Inverter
Couldn't load pickup availability
Low cost 2000w true sine wave inverter for sale by manufacturer, 12V/24V/48V DC input, 110V/120V, 220V/230V/240V AC 50Hz/60Hz output, a good power devices for RV, motorhome etc.
12v, 24v, 48v 2000 watt pure sine wave inverter for your RV, motor home, laptops, cellphones, battery chargers and other home devices, USB outlet is available.
Basic Specification
| Input | DC Voltage | 12V | 24V | 48V | ||
| DC Voltage Range | 10.5V~15V | 21V~30V | 42V~60V | |||
| Output | AC Voltage | 100V, 110V, 120V, 220V, 230V, 240V (Option) | ||||
| Frequency | 50 Hz / 60 Hz +/-0.3% (Option) | |||||
| Rated Power | 2000W | |||||
| Peak Power | 4000W | |||||
| Waveform | Pure sine wave (THD<3%) | |||||
| Efficiency | >90% | |||||
| Fuse | 40A | 20A | 10A | |||
| Remote Control | YES (Add-on) | NO | ||||
| USB Port | DC 5V +/- 5%, 500 mA | |||||
| Outlet Types | Universal outlet (Or specify it in orders) | |||||
| Protection | Over Voltage | All indicators OFF, alarm Bi~~~ | ||||
| Under Voltage | 10.5V | 21V | 42V | |||
| Indicate alarm Bi~~~, then all indicators OFF, alarm BiBi~~~ | ||||||
| Overload & Short Circuit | Red indicator ON, alarm BiBi~~~ | |||||
| Overheat | Yellow indicator ON | |||||
| Environment | Working Temperature | -5-50°C | ||||
| Storage Temperature | -20-55°C | |||||
| Working Humidity | 10%-90% | |||||
| Storage Humidity | 5%-95% | |||||
| Specs | Dimension | (370+33) * 216 * 88 mm | ||||
| Package Size | 485 * 255 * 110 mm | |||||
| Net Weight | 5 kg | |||||
| Gross Weigh | 6.6 kg | |||||
Tips: Can I connect a 2000w pure sine wave inverter to an adapter with 220V 50Hz power supply input to get 110V 60Hz power?
A power inverter can convert DC to AC using on RV, homemotor, car etc. to charge laptop, cellphone etc. Suppose you have a 2000 watt pure sine wave inverter which is powered by a set of 12V/24V DC batteries, and has an output of 110V 60Hz, you want to connect the inverter with an adapter to the wall plug (220V 50Hz). (PS, you can use a GoHz frequency converter to convert 220V 50Hz to 110V 60Hz, or vice)
In a word, NO, unless the load requirements are so small they approach no-load. Of course, it all depends on the actual power level you require from this 2000 watt sine wave inverter and the inverter's full load power capability, and whether or not it's a true sine type or a quasi-sine (aka modified sine). Generally, the pure sine wave inverter will require large DC current pulses from the battery and will need at least 1-5 amps from a lab supply or adapter, even at no-load on the power inverter.
