30 kVA 3 Phase Solid State Frequency Converter

Affordable price 30 kVA 3 phase solid state frequency converter, change 60 Hertz to 50 Hertz, boost 220V to 400 /480V, output three phase or single phase, pure sine wave AC power source.

30 kVA 3 phase solid state frequency converter, changeable output frequency (0-400Hz) and voltage (0-520V AC), easy changing 60 Hz to 50 Hz power, pure sine wave power supply.

Specification

Model	HZ-50-3330
Capacity	30 kVA
Dimension	900*800*1200 mm
Weight	330kg

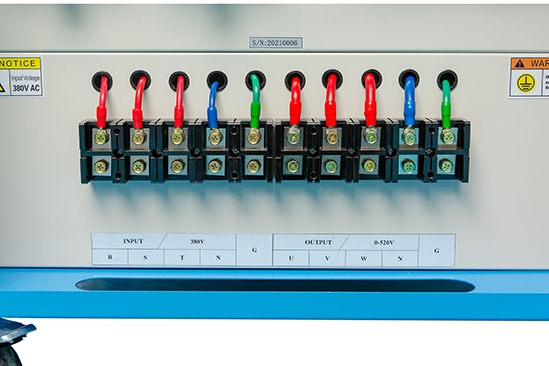

Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 83.2A
		220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 41.6A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option..
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
	Humidity	0 - 90% (Non condensation)
Warranty	18 months

* The input voltage is factory selected.
