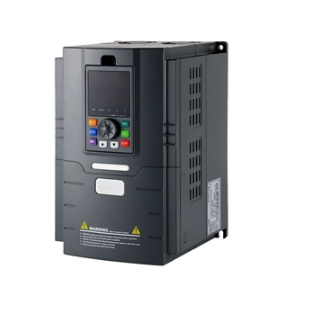

5 hp (3.7 kW) Single Phase Output VFD

5hp single phase output variable frequency drive with cheap price, running your single phase motor in variable speeds.

5hp (3.7kW) single phase VFD, 1-phase 220v, 230v, 240v 50Hz/60Hz input, single phase 0-220v output.

GoHz single phase output VFDs work for both L-N-G motors and split phase (L1-L2, +N, G) motors.

Specification:

Basics    Model    GK3000-1S0037
Capacity    5 hp (3.7 kW)
Shipping weight    7 kg
Dimension    167*170*314 mm
I/O Feature    Rated current    25 A
Input voltage    Single phase AC 220V, 230v, 240v ±15%
Input frequency    47~63Hz
Output voltage    0～rated input voltage
Output frequency    V/f control: 0~500Hz
Over load capacity    150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s
Control Features    Control mode    V/f control
Operation command mode    Keypad control, Terminal control, Serial communication control
Frequency setting mode    Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
Starting torque    1 Hz/150%
Speed adjustment range    1:50
Carrier frequency    1.0-16.0kHz, automatically adjusted according to temperature and load characteristics
Frequency accuracy    Digital setting: 0.01Hz
Analog setting: Maximum frequency * 0.05%
Torque boost    Automatically torque boost; manually torque boost: 0.1%~30.0%
V/f curve    Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode    Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
DC braking    DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s
Jog operation    Jog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s
Simple PLC & multi-step speed operation    GoHz VFD can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
Built-in PID    Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation    Keep output voltage constant automatically when input voltage fluctuating
Input/output terminals    Input terminals    Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI:
AI1: 0～10V or 0/4～20mA
A12: 0～10V or 0/4～20mA
Output terminals    1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output)
2 relay output
2 analog output: 0/4~20mA or 0~10V
Communication terminals    Offer RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface    LED display    Display frequency setting, output frequency, output voltage, output current, etc.
Multifunction key    QUICK/JOG key, can be used as multifunction key
Environment    Ambient temperature    -10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃).
Humidity    90%RH or less (non-condensing)
Altitude    ≤1000M: Output rated power, ＞1000M: Output derated
Storage temperature    -20℃～60℃
Note: The single phase motor should Not be adjusted to run based on a lower frequency than 80% of its rated frequency for along time, otherwise the motor may fail.

GoHz 5hp single phase VFD wiring instruction for single phase induction motor
Single phase induction motor has specific wiring requirements in connecting with GoHz 5 hp single phase variable frequency drive to enable your single phase motor running properly, please follow below instructions step by step:
GoHz VFD wiring for single phase induction motor

Single phase motor has one or two capacitors, disassembly them. The VFD output can't have capacitor.
VFD Common Terminal: Running GoHz 5hp VFD at 50Hz without connecting loads, measuring the output voltages of U-V, U-W, and V-W, two of three voltage values are the same, their common port is VFD's common terminal. Usually the default common terminal is V phase. (The output voltage is a bit higher for the non-common terminal)
Single phase motor has 3 windings and 6 taps. Base on the measuring results of the resistance by a multimeter, the biggest resistance is the secondary winding (Z1, Z2), the smaller resistance is the main winding (U1, U2), the smallest resistance (conducting) is centrifugal switch (V1, V2).
The Coupling End of the single phase motor secondary winding (Z2) and main winding (U2) is connected to GoHz 5 hp VFD's output common terminal (V phase).
The Coupling End of the single phase motor main winding (U1) and centrifugal switch (V1) is connected to GoHz 5 hp VFD's U phase. The Coupling End of the secondary winding (Z1) and capacitor is connected to the VFD's W phase. In case of the induction motor running in reverse, please exchange the VFD's U phase and W phase.
GoHz 5hp VFD wiring instruction for single phase motor without disassembling capacitors
Connecting the single phase motor input lines (L, N) to GoHz 5 hp VFD's V, U or W terminals. Generally V Phase should be connected, U or W is optional. Refer to below wiring picture:
GoHz VFD wiring for single phase motor without disassembling capacitors
