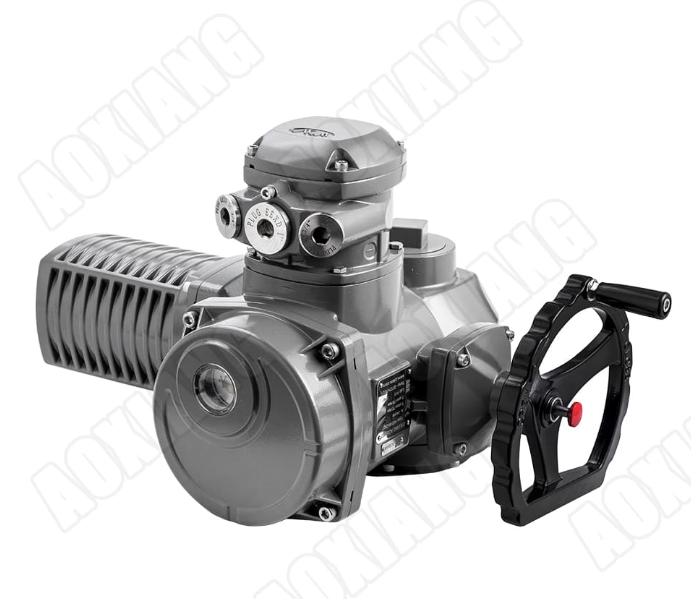

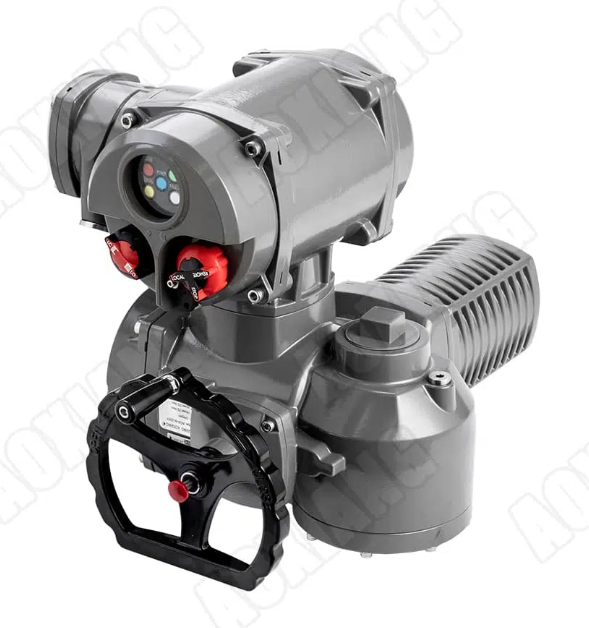

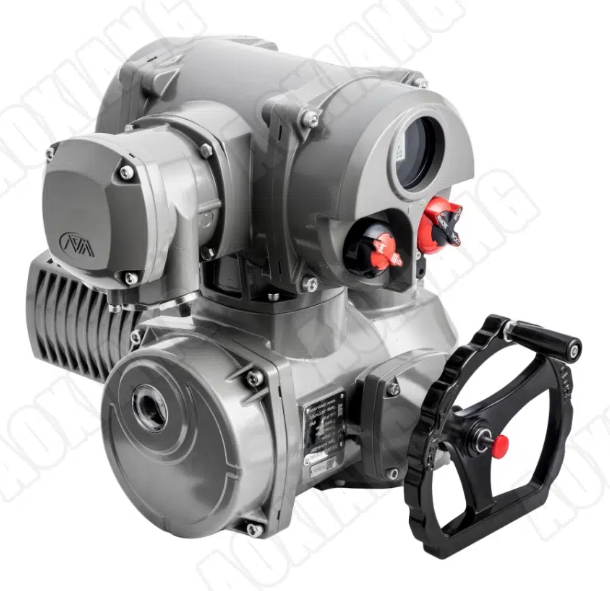

AOX-M-Z Series Multi Turn Electric Valve Actuator
AOX-M-Z Series Multi Turn Electric Valve Actuator
Couldn't load pickup availability
Ingress Protection: IP67 (IP68 optional), explosion-proof rating: Exdb ⅡC T5
Torque Range: 30-1000Nm, with gearbox: 100Nm~500KNm
Functional Modes: Intelligent (ICUC), non-invasive integrated (SRCU), light indication (LCU), regulating (PCU), switching
Communication Protocols: Modbus, Profibus, Hart
Operating Temperature: -30℃~+70℃ (optional: -30℃, -40℃, -60℃)
Product Introduction:
The AOX-M series is versatile, capable of operating a wide range of valves. It handles multi-turn rotary valves like gate and globe valves, and can be adapted for butterfly, ball, damper, slide, plug, and louver valves through the combination of various mechanical components. The housing is constructed from durable hard aluminum alloy or ductile iron.
Product Specifications:
| General specifications | |
| Torque range | ·Direct installation: 70-2500Nm ·With gearbox: 100Nm~500KNm |
| Shell material | Die cast aluminum |
| Position indicator | Even in case of power failure, the valve position dial can display continuous position changes |
| Tightness | |
| External corrosion protection | Paint system |
| ·Polyester powder coating conforms to GBT 18593-2001 standard ·Optional protection for highly corrosive condition | |
| ·Screws are all stainless steel screws | |
| Travel/limit | |
| Trave | ≥360° |
| Limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Auxiliary limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Torque switch | On/Off,SPDT, 250V AC 10A |
| Mechanical specifications | |
| Self locking device | Worm gear and worm mechanism provide self-locking |
| Output flange | The bottom installation dimension shall conform to ISO5210 international standard |
| Output shaft | The output shaft drive sleeve can be disassembled and machined for adaptability. Can be installed vertically or horizontally |
| Seismic performance | X YZ10g, 0.2~34 Hz, 30 minutes |
| lubrication | Shell special motor oil |
| Manual operation | Mechanical clutch mechanism |
| Handwheel | Reliable, labor-saving, small size |
| Electrical specifications | |
| Motor power supply | Standard: 380/440V AC 3Phase,50/6OHz,±10% |
| Optional: 220V AC 1Phase, 440V AC 3Phase, 50/60Hz,±10% | |
| Electric machinery | Squirrel cage asynchronous motor, insulation class H |
| Failsafe/Operating Temperature | Built in thermal protection, open/close 120 ℃± 5 ℃ |
| Heater | 30W(220V AC Anti condensation) Optional |
| Cable entry | Double sealed 3 cable entry (NPT 3/4 “, NPT 1”, NPT 1-1/2 “optional) |
| EC Directive | |
| Conformity with EC Directives | The actuator meets the following requirements |
| ·2014/30/EU Electromagnetic Compatibility ·2014/35/EU Low Voltage | |
| The following harmonized standards | |
| ·General emission standard for industrial environment EN 61000-6-44 ·Rotating electrical machine standard EN 60034-1 | |
| ·General anti-interference standard for industrial environment EN 61000-6-4 | |
