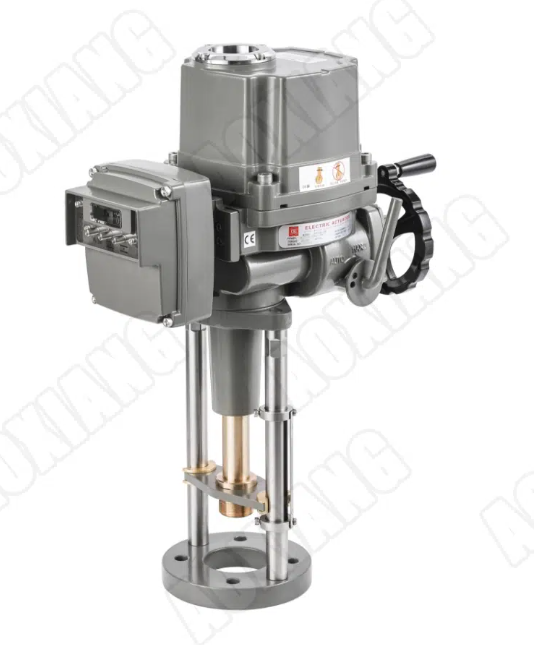

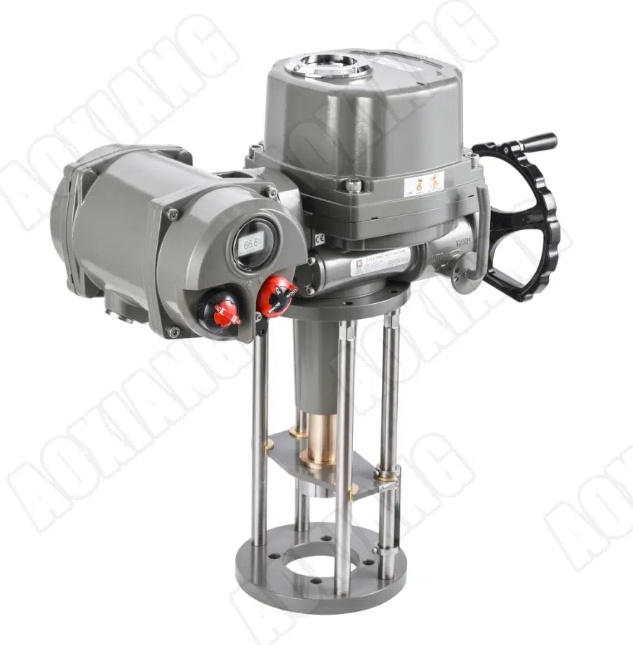

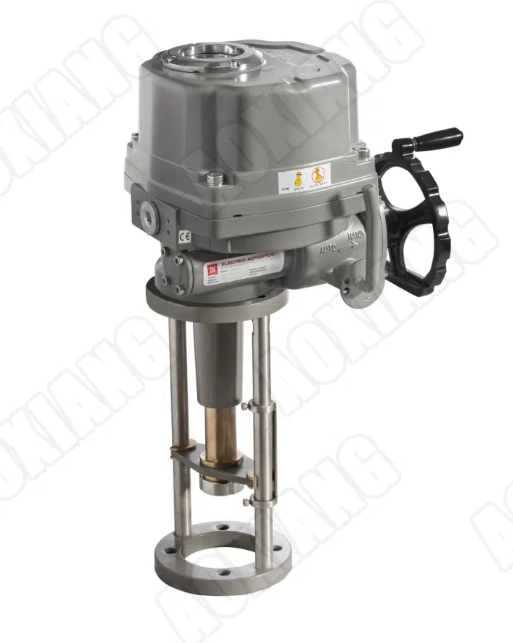

AOX-Q-L Series Explosion-Proof Linear Electric Valve Actuator

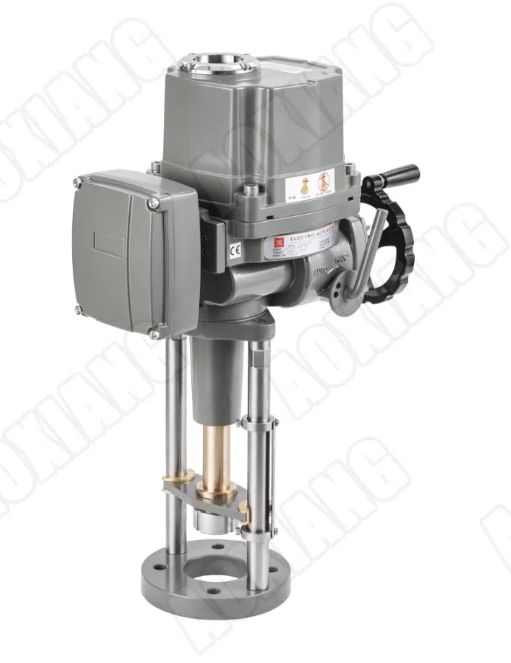

AOX-Q-L Series Explosion-Proof Linear Electric Valve Actuator
Couldn't load pickup availability
Enclosure: Rigid aluminum alloy
Protection Rating: IP67 (optional IP68)
Explosion Protection Rating: Exdb II C T5
Thrust: 2000-40000 Nm
Travel Range: 25-100 mm (customizable)
Functions: Intelligent type (ICUC), non-intrusive integrated type (SRCU), adjustable type (PCU), switch type
Bus: Modbus, Profibus, Hart
Ambient Temperature: -30°C to +70°C (optional -30°C, -40°C, -60°C)
Product Introduction:
The “AOX-Q-L” series linear electric actuators feature a compact design, offering a manual-automatic clutch and excellent weather and shock resistance. When the actuator loses power, the self-locking transmission mechanism ensures the valve position remains unchanged. It is suitable for the on-off and regulating control of linear motion valves, such as gate valves, globe valves, and control valves. This series is widely applied across various industries, including petroleum, chemical, water treatment, shipbuilding, paper manufacturing, power plants, heating systems, and building automation.
Product Specifications:
| General specifications | |
| Torque range | ·Direct installation: 2000-40000N ·Larger or quick opening optional AOX-M series |
| Shell material | Die cast aluminum |
| Position indicator | Even in case of power failure, the valve position dial can display continuous position changes |
| Tightness | |
| External corrosion protection | Paint system |
| ·Polyester powder coating conforms to GBT 18593-2001 standard ·Optional protection for highly corrosive condition | |
| ·Screws are all stainless steel screws | |
| Travel/limit | |
| Trave | 16~100mm(Other travel can be customized) |
| Limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Auxiliary limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Torque switch | On/Off,SPDT, 250V AC 10A(except AOX-Q-L20/30/50/80) |
| Mechanical specifications | |
| Self locking device | Worm gear and worm mechanism provide self-locking |
| Output flange | The bottom installation dimension shall conform to ISO5211 international standard |
| Output shaft | The output shaft drive sleeve can be disassembled and machined for adaptability. Can be installed vertically or horizontally |
| Seismic performance | X YZ10g, 0.2~34 Hz, 30 minutes |
| lubrication | Aluminum base grease (EP type) |
| Manual operation | Mechanical clutch mechanism |
| Handwheel | Reliable, labor-saving, small size |
| Electrical specifications | |
| Motor power supply | 110/220V AC 1Phase,380/440V AC 3Phase,50/60Hz,土10% |
| Control power | 110/220V AC 1Phase,50/60 Hz,土10% |
| Electric machinery | Squirrel cage asynchronous motor, insulation class H |
| Failsafe/Operating Temperature | Built in thermal protection, open/close 120 ℃± 5 ℃ |
| Heater | 30W(220V AC Anti condensation) Optional |
| Cable entry | 2x NPT 3/4″ standard (three connection holes are optional) |
| EC Directive | |
| Conformity with EC Directives | The actuator meets the following requirements |
| ·2014/30/EU Electromagnetic Compatibility ·2014/35/EU Low Voltage | |
| The following harmonized standards | |
| ·General emission standard for industrial environment EN 61000-6-44 ·Rotating electrical machine standard EN 60034-1 | |
| ·General anti-interference standard for industrial environment EN 61000-6-4 | |
