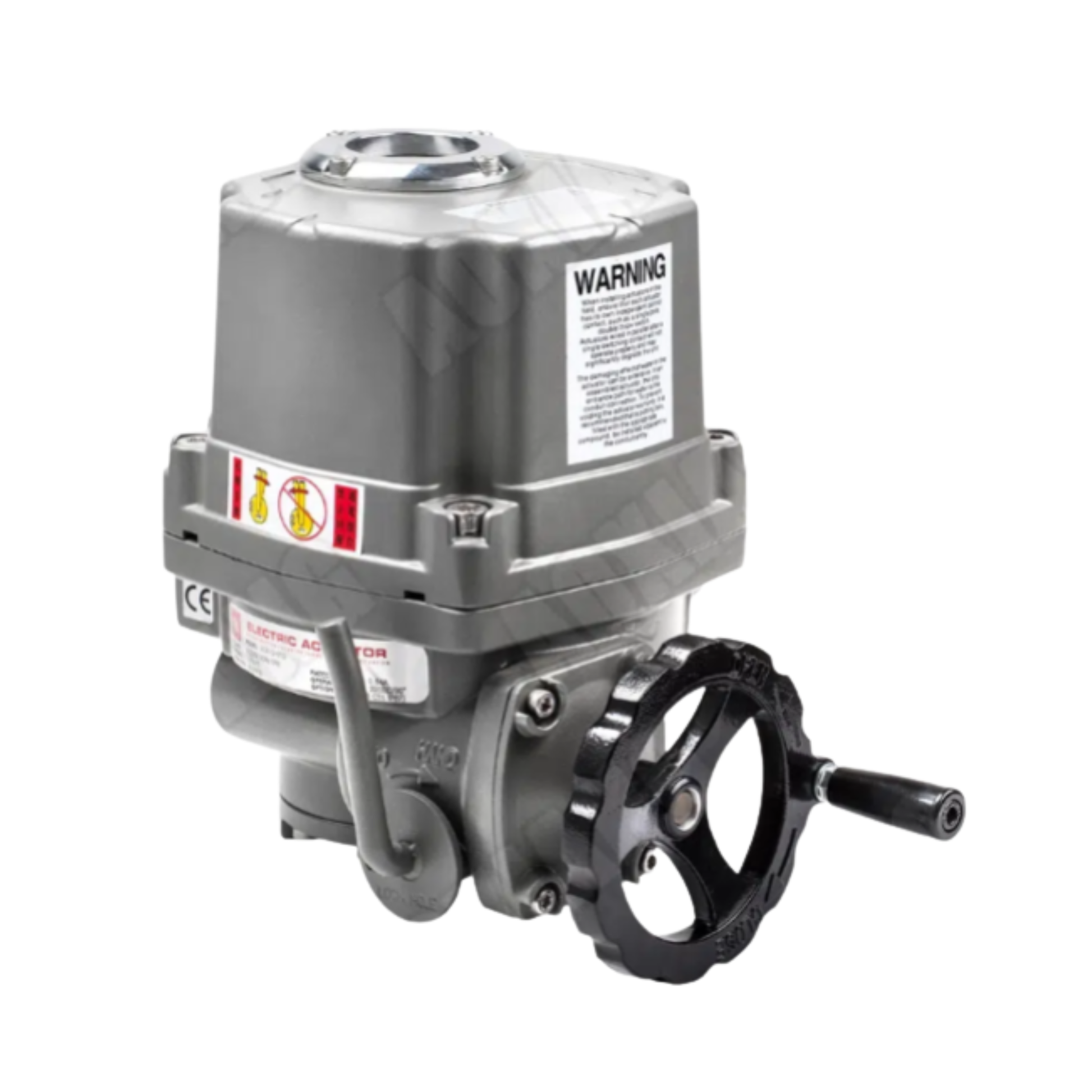

AOX-Q On-Off Electric Valve Actuator

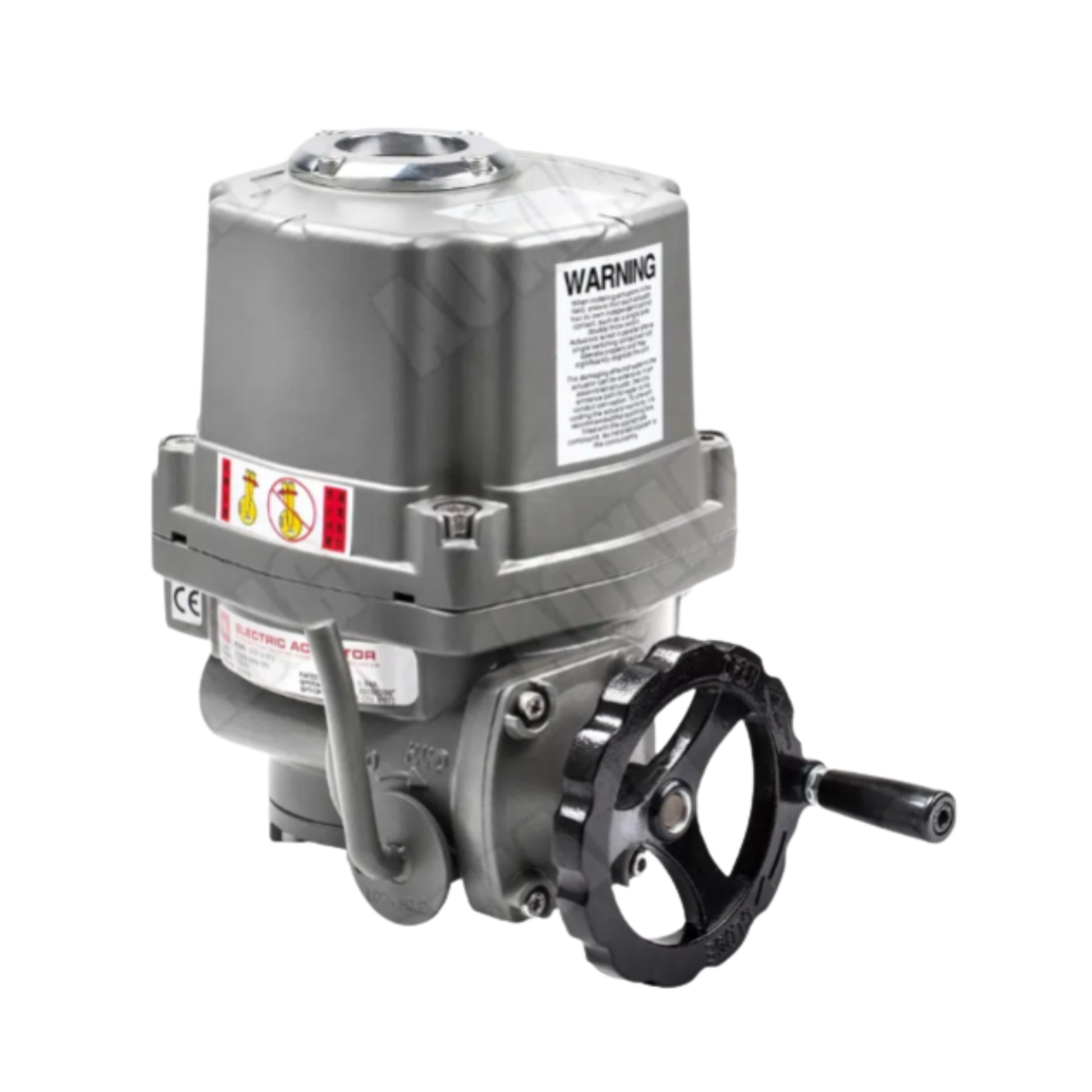

AOX-Q On-Off Electric Valve Actuator
Couldn't load pickup availability
Enclosure: Rigid aluminum alloy
Protection Rating: IP67 (optional IP68)
Explosion Protection Rating: Exdb II C T5
Torque: 50-5000 Nm
Travel Range: 0-90°
Functions: Intelligent type (ICUC), non-intrusive integrated type (SRCU), light indication (LCU), adjustable type (PCU), switch type
Bus: Modbus, Profibus, Hart
Ambient Temperature: -30°C to +70°C (optional -30°C, -40°C, -60°C)
Product Introduction:
The “AOX-Q” series electric actuators are used to control valves and other similar products with a 0° to 270° rotation, such as butterfly valves, ball valves, dampers, baffle valves, plug valves, louver valves, etc. They are widely applied across various industries, including petroleum, chemical, water treatment, shipbuilding, paper manufacturing, power plants, heating systems, building automation, and light industry. The actuators use AC380V/220V/110V as the power supply, and a 4-20mA current signal or 0-10V DC voltage signal as the control signal, enabling the valve to move to the desired position for automated control. The maximum output torque reaches 6000 N•M.
Product Specifications:
| General specifications | |
| Torque range | ·Direct installation:50-1200Nm ·With reducer:1500~6000Nm ·Larger or quick opening optional AOX-M series |
| Shell material | Die cast aluminum |
| Position indicator | Even in case of power failure, the valve position dial can display continuous position changes |
| Tightness | |
| External corrosion protection | Paint system |
| ·Polyester powder coating conforms to GBT 18593-2001 standard ·Optional protection for highly corrosive condition | |
| ·Screws are all stainless steel screws | |
| Travel/limit | |
| Trave | 90°standard (90°~270° Optional) |
| Limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Auxiliary limit switch | 2×Open/Close, SPDT, 250V AC 10A |
| Torque switch | On/Off,SPDT, 250V AC 10A(except AOX-Q-005/008/010) |
| Mechanical limit | 2 External adjusting bolts |
| Mechanical specifications | |
| Self locking device | Worm gear and worm mechanism provide self-locking |
| Output flange | The bottom installation dimension shall conform to ISO5211 international standard |
| Output shaft | The output shaft drive sleeve can be disassembled and machined for adaptability. Can be installed vertically or horizontally |
| Seismic performance | X YZ10g, 0.2~34 Hz, 30 minutes |
| lubrication | Aluminum base grease (EP type) |
| Manual operation | Mechanical handle (Optional handwheel) |
| Handwheel | Reliable, labor-saving, small size |
| Electrical specifications | |
| Motor power supply | 110/220V AC 1Phase,380/440V AC 3Phase,50/60Hz,土10% |
| Control power | 110/220V AC 1Phase,50/60 Hz,土10% |
| Electric machinery | Squirrel cage asynchronous motor, insulation class H |
| Failsafe/Operating Temperature | Built in thermal protection, open/close 120 ℃± 5 ℃ |
| Heater | 30W(220V AC Anti condensation) Optional |
| Cable entry | 2x NPT 3/4″ standard (three connection holes are optional) |
| EC Directive | |
| Conformity with EC Directives | The actuator meets the following requirements |
| ·2014/30/EU Electromagnetic Compatibility ·2014/35/EU Low Voltage | |
| The following harmonized standards | |
| ·General emission standard for industrial environment EN 61000-6-44 ·Rotating electrical machine standard EN 60034-1 | |
| ·General anti-interference standard for industrial environment EN 61000-6-4 | |
