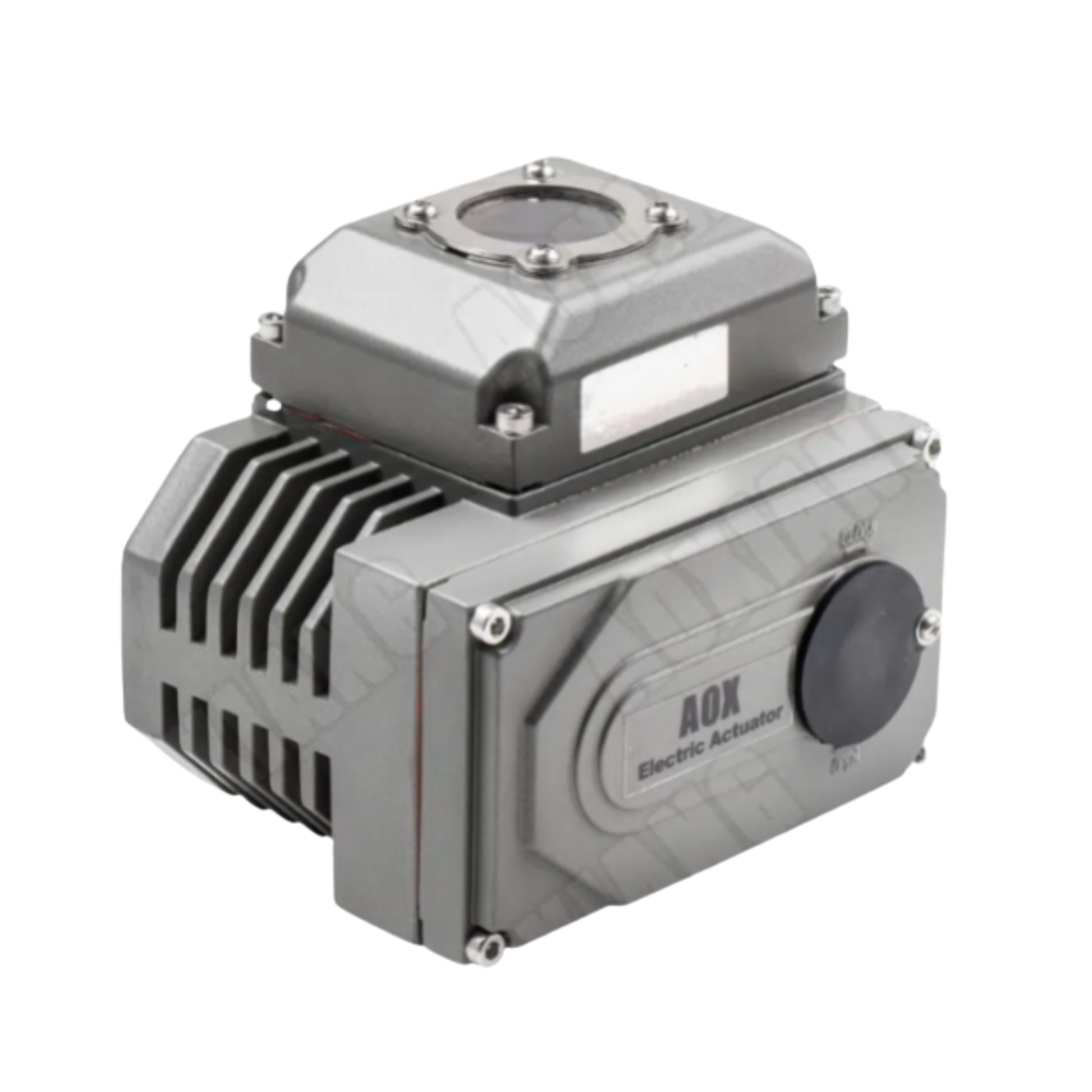

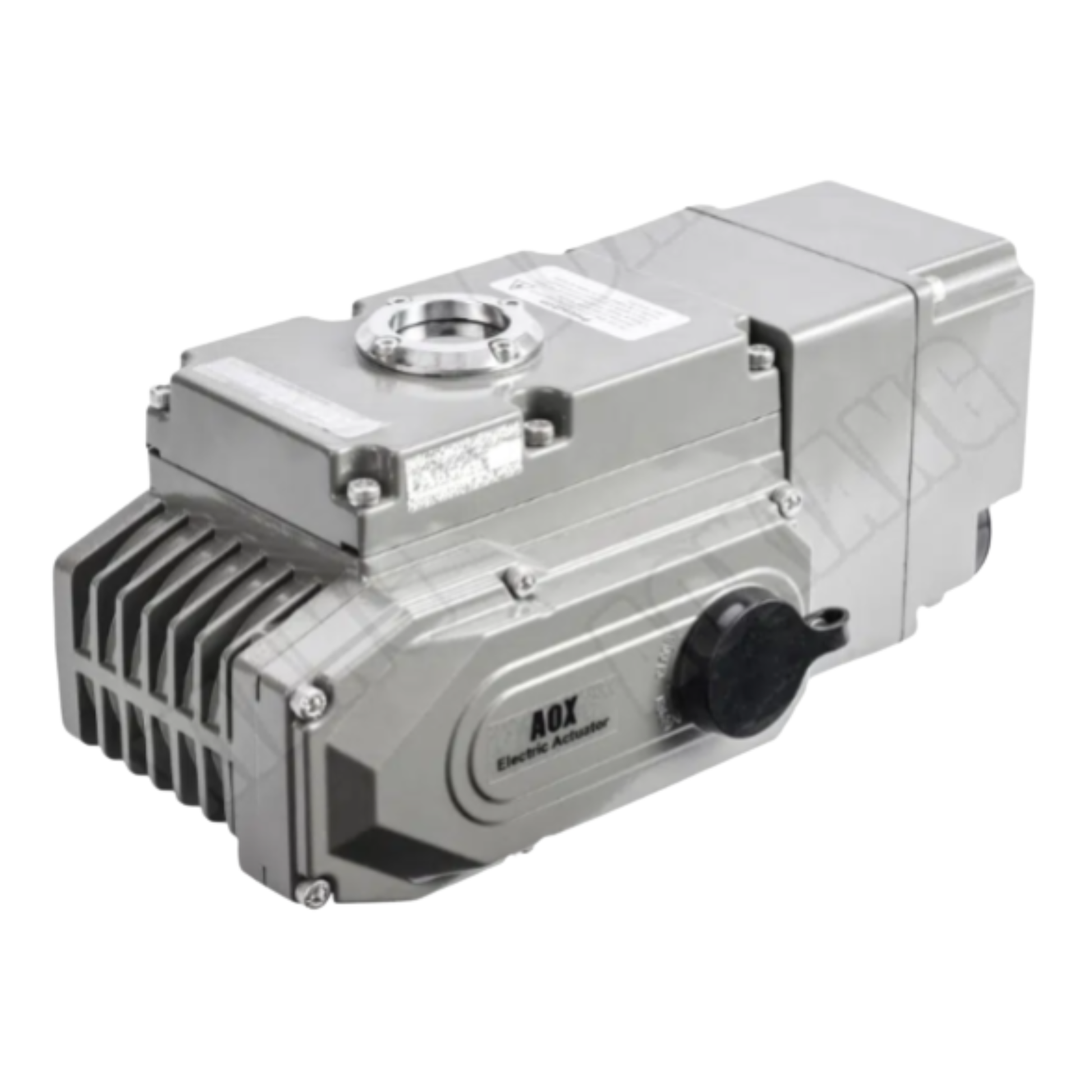

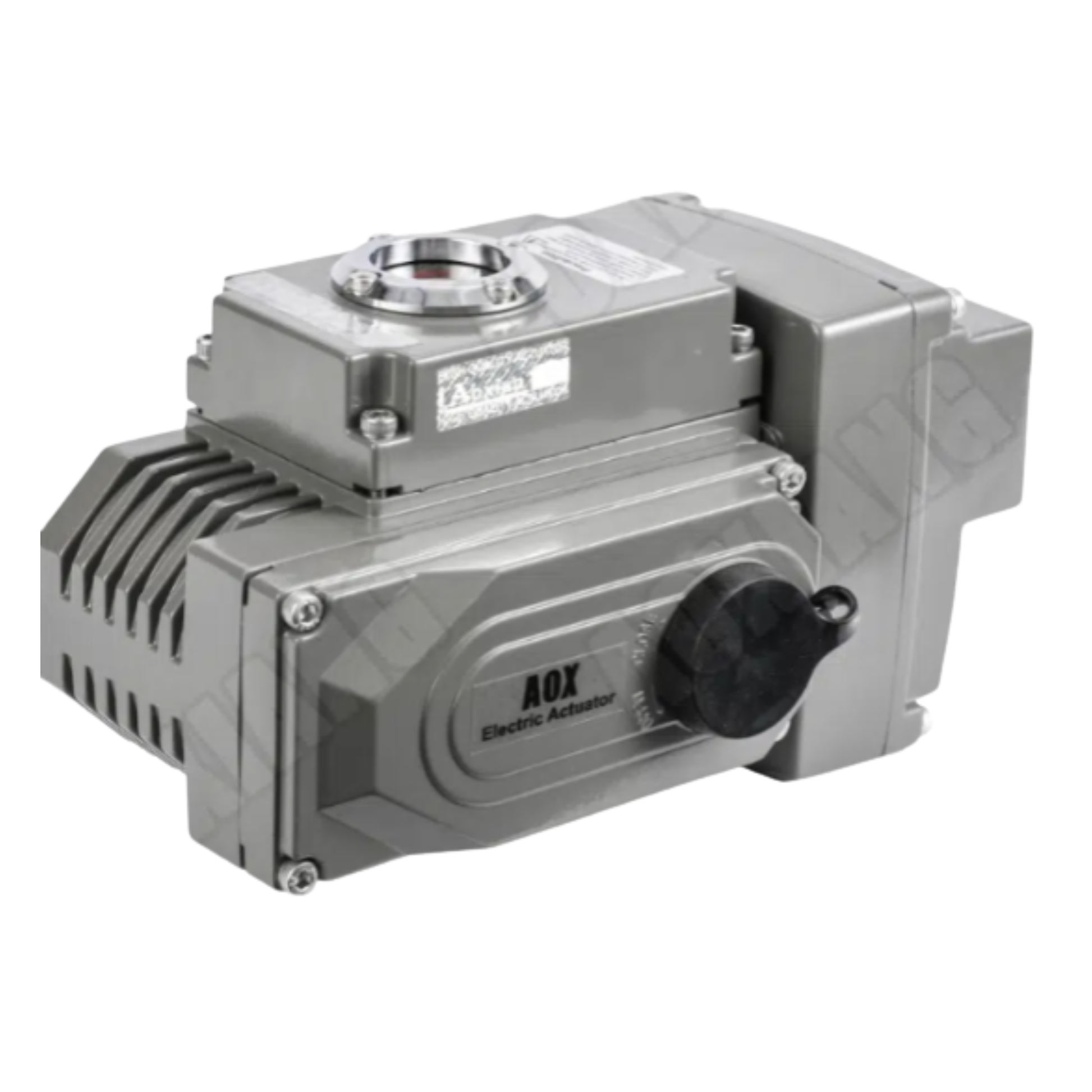

AOX-R Series Quarter Turn Electric Valve Actuator
AOX-R Series Quarter Turn Electric Valve Actuator
Couldn't load pickup availability
Housing: Hard Aluminum Alloy
Protection Grade: IP67 (optional IP68)
Torque: 30~5000Nm
Stroke: 0~90°
Function: Intelligent Type, Modulating Type (PCU), On/Off Type
Ambient Temperature: -30°C~+70°C (optional -30°C, -40°C, -60°C)
Our Certification
Product Introduction:
The “AOX-R” series features a compact structure with excellent weather resistance and vibration resistance. In the event of a power failure, the self-locking transmission mechanism ensures that the valve position remains unchanged. It is equipped with dual mechanical limit stops to prevent overtravel. The removable drive coupling allows for easy machining, with bottom mounting dimensions conforming to the ISO5211 standard. It is suitable for use with butterfly valves, ball valves, dampers, gate valves, plug valves, louver valves, multi-port valves, and various special valves.
Product Specifications:
| General specifications | |
| Torque range | 30-5000Nm |
| Shell material | Die cast aluminum |
| Position indicator | Even in case of power failure, the valve position dial can display continuous position changes |
| Tightness | |
| External corrosion protection | Paint system |
| ·Polyester powder coating conforms to GBT 18593-2001 standard ·Optional protection for highly corrosive condition | |
| ·Screws are all stainless steel screws | |
| Travel/limit | |
| Trave | 90 ° standard (90 °~270 ° optional) |
| Power loss reset direction | Off, the opening direction can be set |
| Midway stop | Electromagnetic brake control |
| Mechanical limit | 2 external adjusting bolts |
| Mechanical specifications | |
| Self locking device | Worm gear and worm mechanism provide self-locking |
| Output flange | The bottom installation dimension shall conform to ISO5211 international standard |
| Output shaft | The output shaft drive sleeve can be disassembled and machined for adaptability. Can be installed vertically or horizontally |
| Seismic performance | X YZ10g, 0.2~34 Hz, 30 minutes |
| lubrication | Aluminum base grease (EP type) |
| Electrical specifications | |
| Motor power supply | 110/220V AC 1Phase,380/440V AC 3Phase,50/60Hz, ±10% |
| Control power | 110/220V AC 1Phase,50/60 Hz, ±10% |
| Electric machinery | Squirrel cage asynchronous motor, insulation class H |
| Failsafe/Operating Temperature | Built in thermal protection, open/close 120 ℃± 5 ℃ |
| Heater | 30W(220V AC Anti condensation) Optional |
| Cable entry | 2×M20*1.5 |
| EC Directive | |
| Conformity with EC Directives | The actuator meets the following requirements |
| ·2014/30/EU Electromagnetic Compatibility ·2014/35/EU Low Voltage | |
| The following harmonized standards | |
| ·General emission standard for industrial environment EN 61000-6-44 ·Rotating electrical machine standard EN 60034-1 | |
| ·General anti-interference standard for industrial environment EN 61000-6-4 | |
