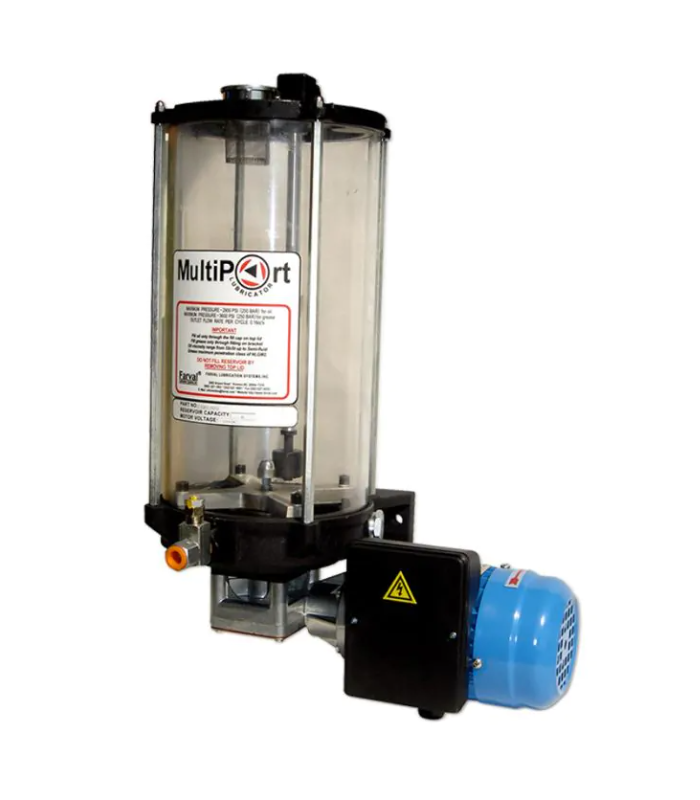

ELECTRIC MULTIPORT GREASE PUMP

ELECTRIC MULTIPORT GREASE PUMP

It is designed to feed progressive lubrication systems. It can be equipped with 1, 2 or 3 fixed flow outputs. Various power sources are also possible (continuous, single-phase, three-phase).

Different tanks are proposed (2, 4 or 8 kg) which can be equipped with minimum level electric controls.

Operation

The multiport pump is equipped with a gear motor with an eccentric system that acts on one or more pumping devices that push the lubricant through the pipes.

Control

The pumps can be equipped with an electrical control of the minimum and maximum level of the tank. Furthermore, each dosing element is equipped with an adjustable safety valve which, in the event of a point of obstruction, visually indicates an overpressure in the lubrication circuit.

Technical data sheet

• Max pressure: 250 bar
• Tank capacity: 2 or 4 kg (plastic tank), 8kg (metal tank)
• Pump element: G1/4 (0.16 cm³/revolution)

Fixed flow rate (12 and 24 VDC): 6.4 cm³/mn

Fixed flow rate (110/220 volts at 50 Hz): 4.3 cm³/min

Fixed flow rate (220/380 volts three-phase at 50 Hz): 4.3 cm³/min

• Supply voltage:

12 or 24 VDC 110 or 220 volts at 50/60 Hz

220/380 volts three-phase at 50/60 Hz

• Minimum and maximum level control: disconnection capacity 240 VAC, 1.5 A, IP67
• Recommended lubricants: NLGI class 2 max grease or oil
• Operating temperature: -18ºC to +50ºC
• Vertical installation

Supplied without pumping elements.

See other configurations.
