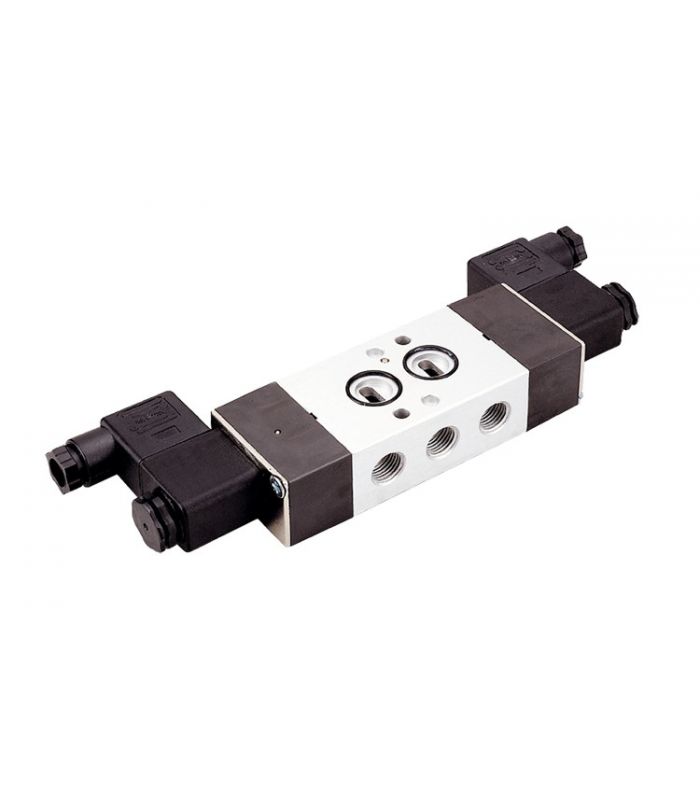

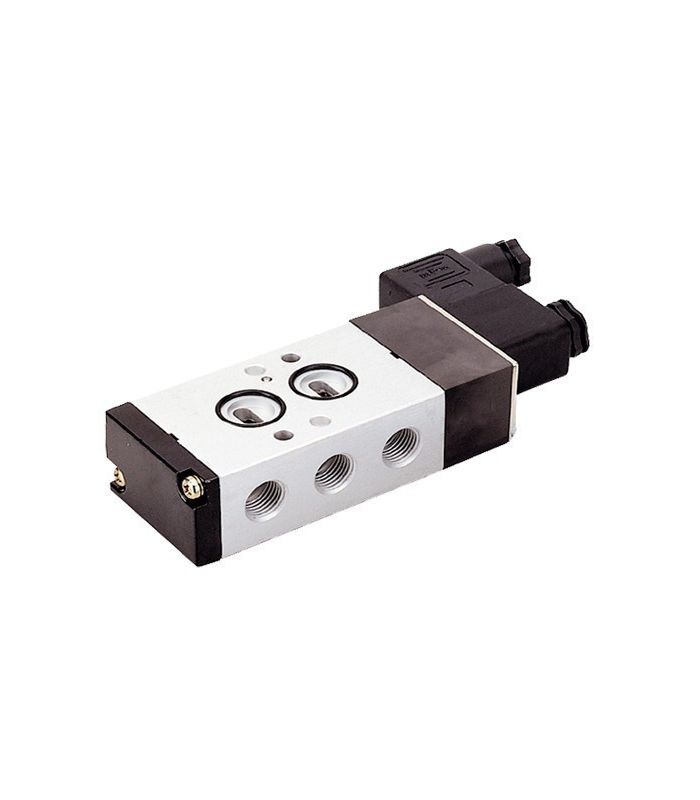

ELECTRICAL DISTRIBUTOR NAMUR CONNECTION

A NAMUR connection electrical distributor is an electromechanical device used to connect and disconnect a pneumatic actuator to an electrical power source.

NAMUR connection electrical distributors are used in a wide range of applications such as industrial machines, transportation equipment and automation equipment.

Data sheet:

• Materials: Pilot in brass and stainless steel, operator, base and piston in POM,
• Aluminum alloy body, aluminum slide, stainless steel spring, brass bushings and NBR gaskets.
• Ø Pitch: 6.7 mm
• Flow rate: 2100 l/min (6 bar)
• Pressure: 2 ÷ 10 bar
• Temperature: -5º ÷ +50º C
• Threads: NAMUR 1/4
• Fluids: Filtered air with or without lubrication.
• Coil: SP22 (NOT INCLUDED)
• Available voltage 12 VDC, 24 VDC, 24 VAC, 110 VAC, 220 VAC
• Power: 3W (DC), 5VA (AC)
• Protection class: IP65 (with connector)
• Cable passage: PG9
