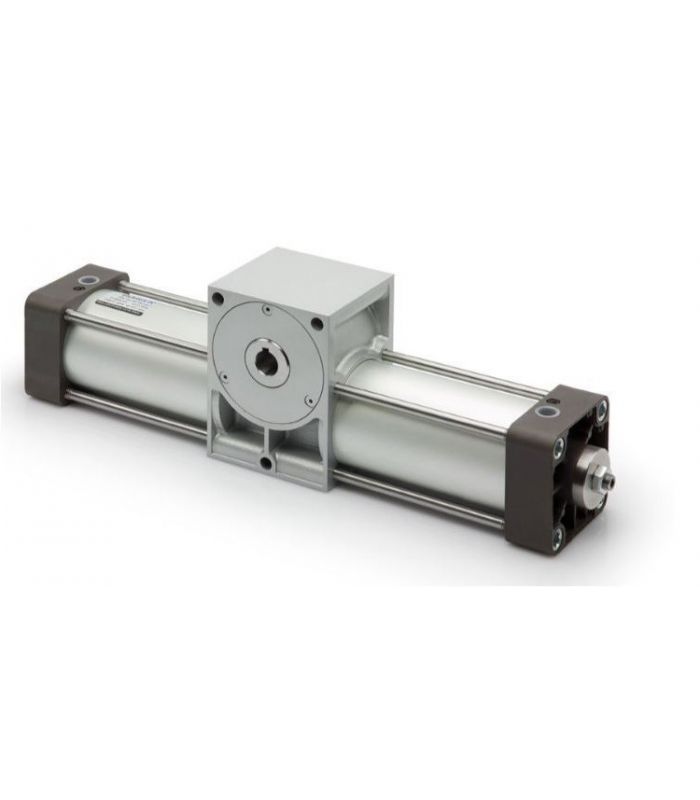

FEMALE SHAFT TURN CYLINDER

Female outlet swing cylinder

• The rotary cylinders have been designed to transform the rectilinear movement characteristic of the pneumatic cylinder into rotary movement through a rack-pinion gear.
• The cylinder adopts the same pneumatic damping system typical of the traditional cylinder and there can be a mechanical adjustment to adjust the angle by +/- 5°.
• Double cushioned effect
• Can be supplied with rotation regulation
• Working pressure 1-10 bar.
• Temperature -20 / 80ºC.
• Compatible fluids: filtered compressed air.
• Availability of diameters from 32 to 100 mm.
• 3 turning positions. 90º-180º-360º
