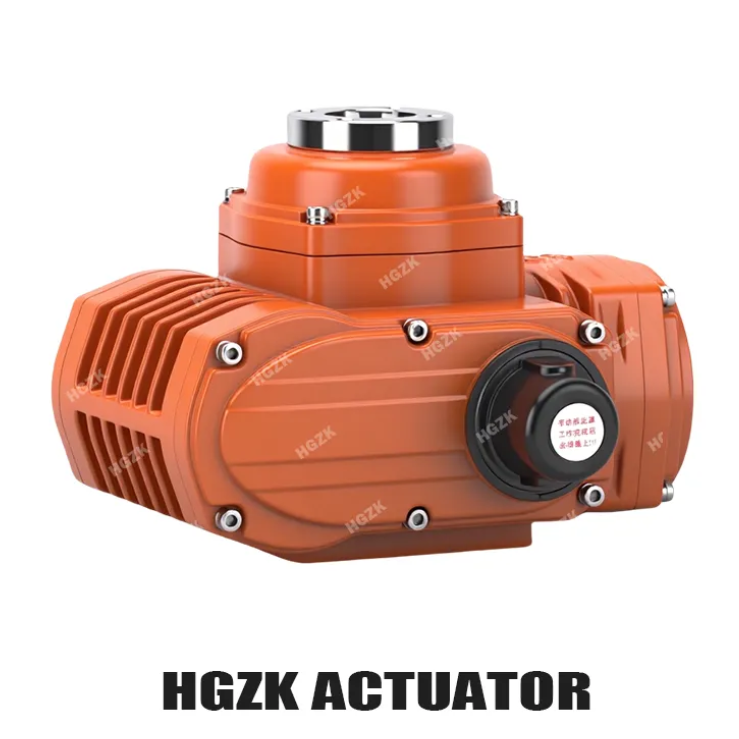

HRB Compact Explosion-proof Electric Actuator

Electric actuator mechanism with 0 °~360° angular travel;

Optional voltage: DC24V,AC24V,AC110V,AV220V, AC380V;

Temperature resistance: -20 'C~+60 'C;Protection level: lP67/P68;
Explosion proof grade: Exd ll CT6Gb；

Voltage withstand level: DC24VAC24V;50VAC for 1 minuteAC110V/AC220V: 1500VAC for 1 minuteAC380V;1800VAC for 1 minute;

Optional functions: Over torque protection, dehumidification heater；

The pointer disk window is made of tempered glass,The valve position can be observed through the pointer disk above the casing
