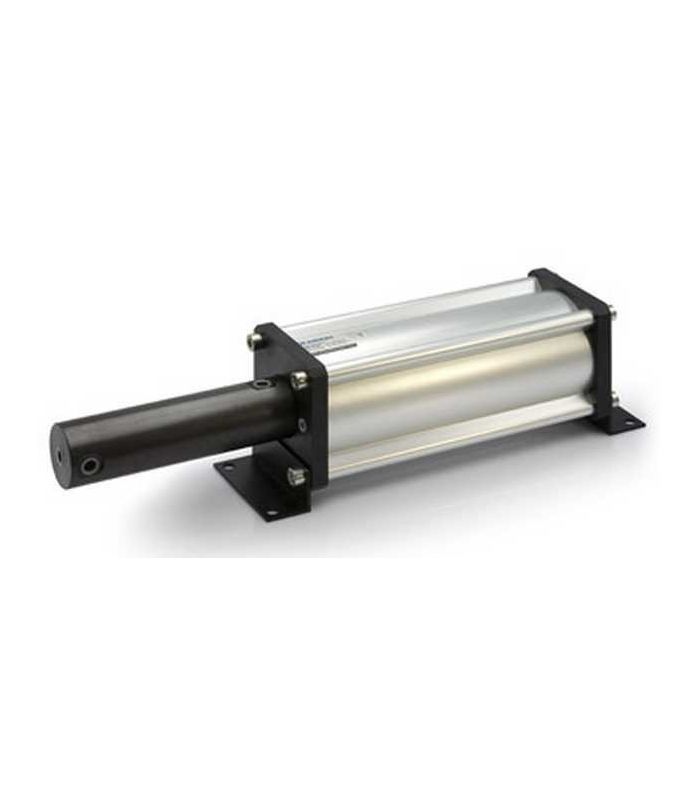

MPO25 AIR-OIL PRESSURE MULTIPLIER

MPO AIR-OIL PRESSURE MULTIPLIER

• The MPO pressure multiplier is a device that consists of a cylinder whose rod acts directly on the oil in the chamber by increasing the high pressure value of 200 bar.
• In the single-acting version we pressurize a volume of 25 cc with a compression ratio of 1:30
• In the double-acting version we pressurize a volume of 50 cc with a compression ratio of 1:25
• For different volumes or compression ratios, contact us .
• It is recommended at the entrance, air filtered to 40 microns.
• Working temperature -10ºC / 70ºC
• Max inlet pressure 7 bar.
• Recommended oil: for oleohydraulic circuits.

                                                                EXAMPLE OF MULTIPLIER ASSEMBLY

1. Air treatment group 3206
2. Non-return valve 1501
3. Distributor 3/2 3" Distributor 5/2 2146
4. Quick exhaust valve 1505
5. Pressure Multiplier 5403
6. Oil deposit
7. Pressure switch 4302
8. Single acting cylinder
