Pneumatic Diaphragm Angle Control Valve

The pneumatic diaphragm angle regulating valve is composed of a pneumatic diaphragm multi-spring actuator and an angle valve. It is small in size and light in weight. The valve core adopts a top guide structure; the flow path in the valve body is simple and has no dead angle; therefore, it can avoid coking, bonding, clogging and other phenomena of the medium, and has a certain self-cleaning ability. This product is suitable for regulating high-viscosity media containing suspended matter.

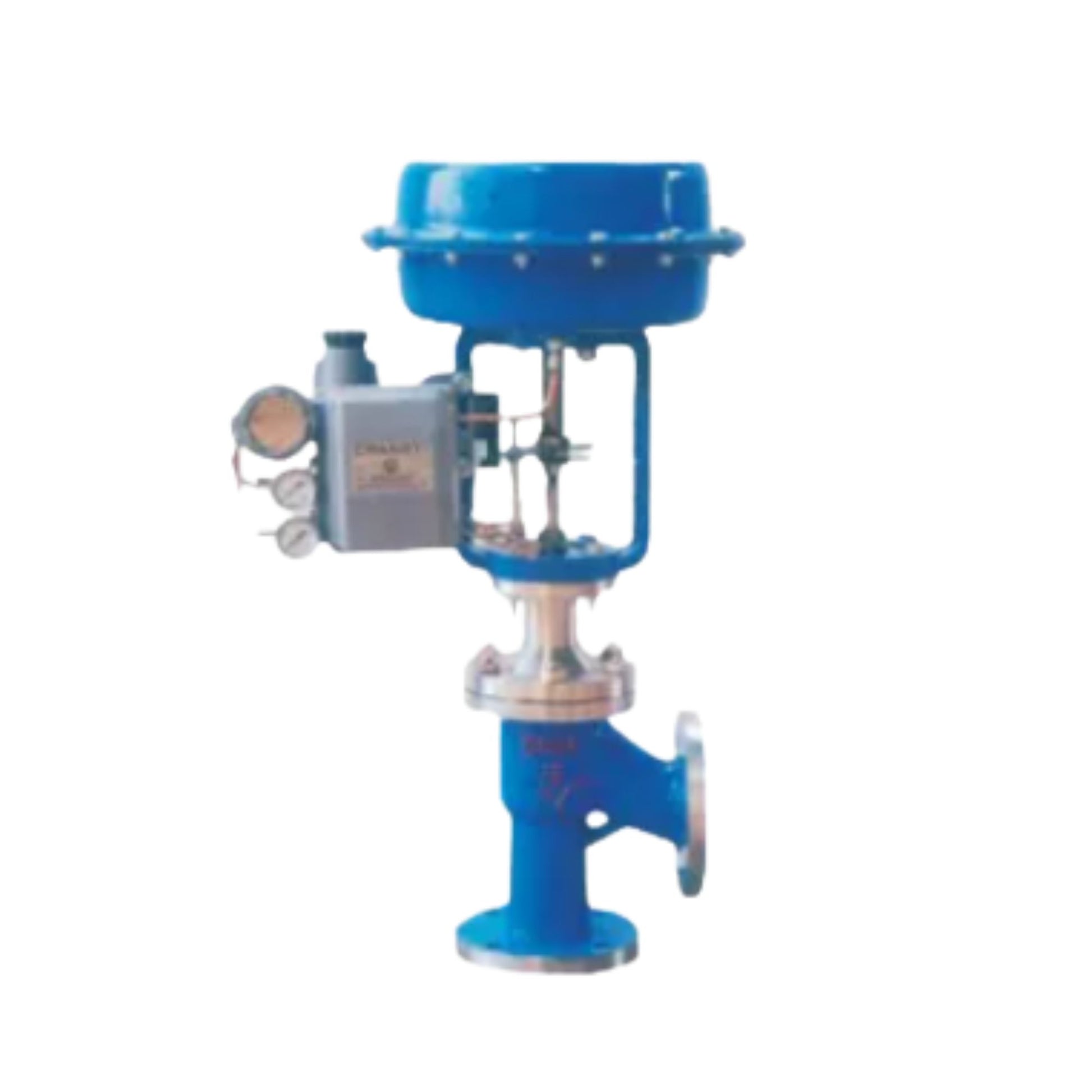

Pneumatic diaphragm angle control valve

• Nominal diameter DN (mm): 20-200mm
  - Valve seat diameter DN (mm): 10-200mm
  - Nominal pressure PN (MPa): 6.4
  - Connection type: Flange connection: according to JB79-59 standard
  - Air source connector: M16x1.5
