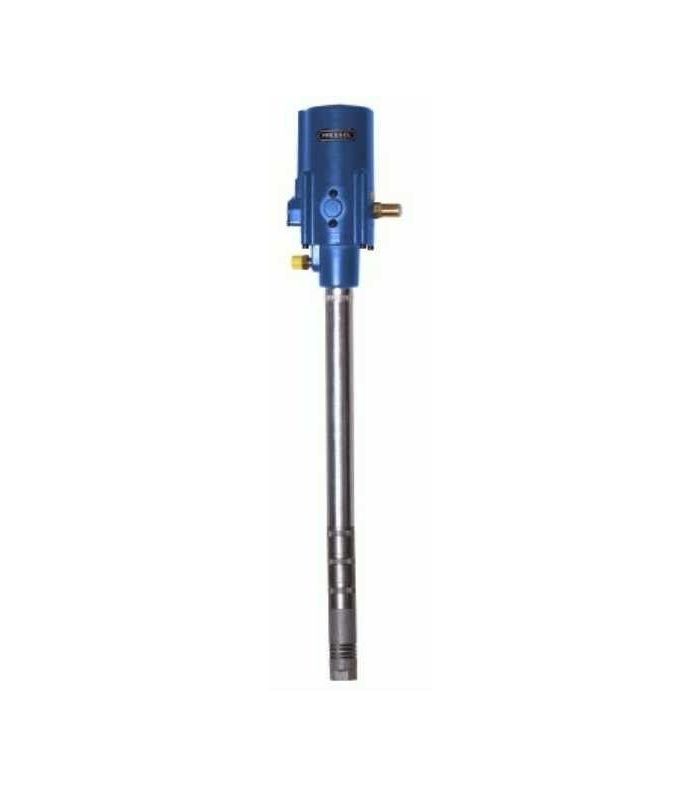

PNEUMATIC GREASE PUMP RATIO 50:1

Features of the 50:1 ratio pneumatic grease pump:

• Suction tube length: 468
• Transmission ratio: 50:1
• Max diameter (mm):130
• Maximum pressure (bar): 10
• Minimum pressure (bar): 2
• Recommended air pressure (bar): 8
• Engine displacement cm³: 220
• Pump displacement cm³: 8
• Number of strokes applying 8 bar (free outlet): 220/min
• Pump performance applying 8 bar (free outlet): 1100 (g/min):
• Pump pressure applying 8 bar of compressed air: 400
• Air consumption applying 8 bar of compressed air: 400 l/min
• Length of the conduit from pump to gun: will be determined depending on the installations
• Maximum suction height: Work at the suction point
• Air connection: G 1/4"
• Connection for grease on the suction application side: 35 ø mm
• Connection for grease on the pressure application side: G 1/4'' a
• Noise intensity in operation but without work; conforms to ISO 9614-2: 78 db (A) (2 m distance)
• Noise intensity with load/work; conforms to ISO 9614-2: 77 db (A) (2 m distance)
• Lubricating viscosity: Greases with a consistency grade of 2 or less according to NLGI (º viscosity from 000 to 6)
• Classic pumping medium: Lubricating greases
• Duration of emptying a barrel: 50 kg grease in 50 minutes
• Color: Blue, Pantone 294 c
• Motor length (mm): 225 mm
• Engine weight (kg): 3,400

Specifications:

• for containers from 10 to 200 kg
• suction tube
• Additional suction mechanism to increase pump performance
• Pressure regulator (regulated at 8 bar)
• For transporting greases from NLGI 0 to NLGI 2
