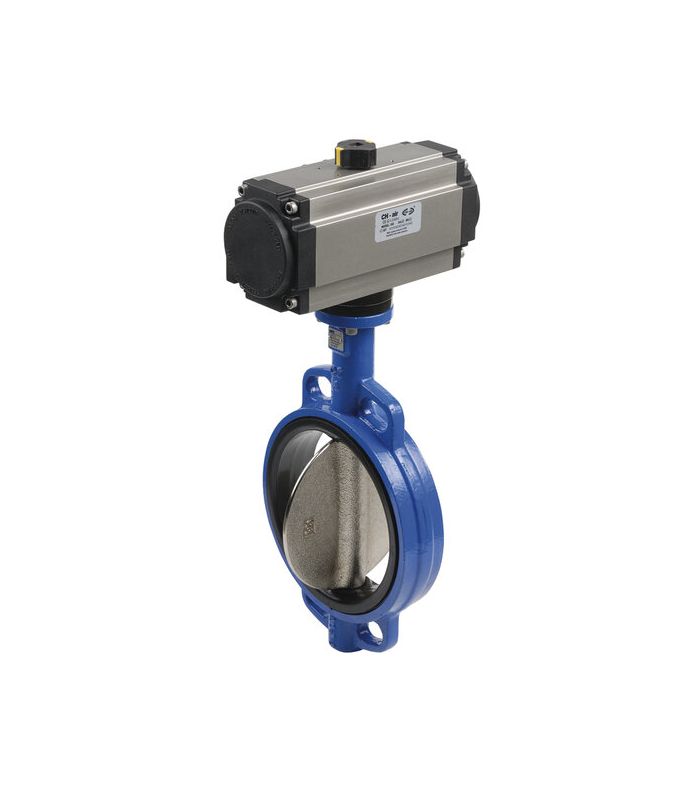

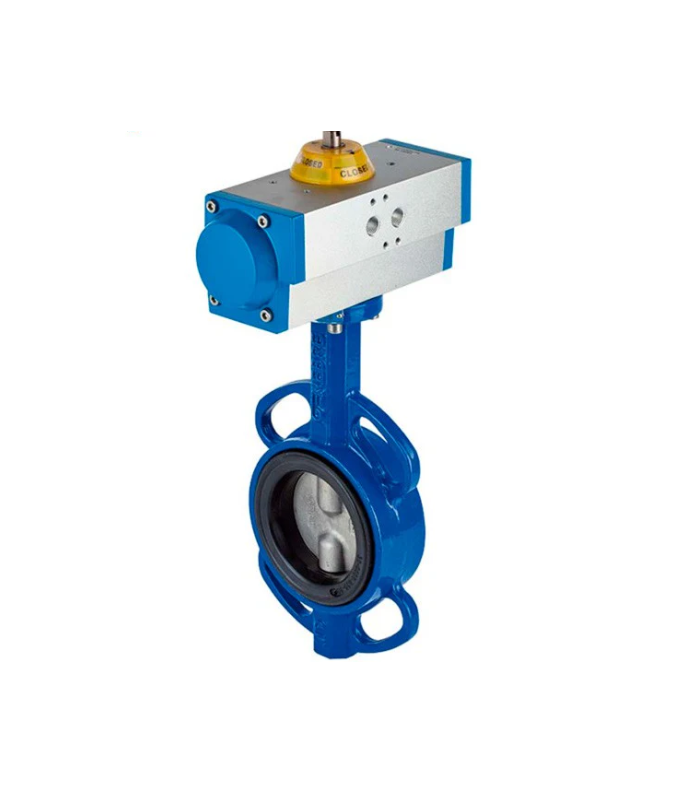

WAFER BUTTERFLY VALVE DISC CAST SINGLE ACTING

The wafer disc cast iron single-acting butterfly valve is used to control the flow of fluids within a piping system.

Its usual applications are in water systems, ventilation systems, chemical industry, wastewater treatment.

Technical data sheet:

• Casting disc, EPDM seals
• Body in grey cast iron GG25, nodular cast iron GGG40-GGG50
• Manufacturing standards: DIN 1691/1 UNE EN 1561, DIN 1693 / UNE EN 1563.
• Connection between DIN 2501 PN10/16 and ASME B16.5 flanges
• Class 150 #
• Temperature Range -15ºC to +150ºC
• GB/T9119-2000 PN 1.0 MPa flange dimensions
• Single acting actuator mod. 5103
