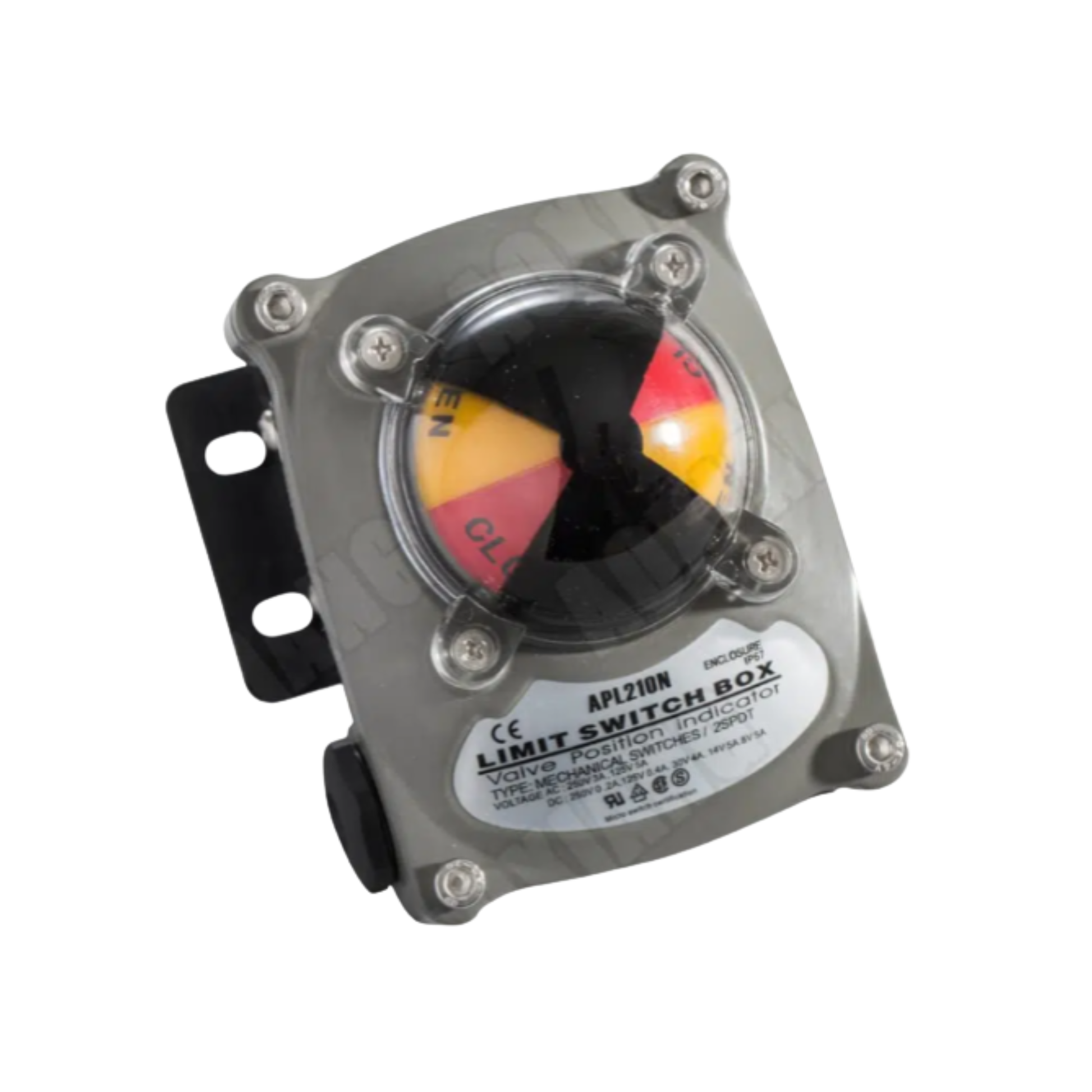

Waterproof Limit switch box

External coating: Polyester powder coating (gray)

Protection level: IP67, NEMA4 an 4X

Environmental temperature: -30 ℃~+75 ℃

Electrical interface: 2 x NPT1/2 ″

Position indication: hemispherical 0 ° -90 ° (on: yellow, off: red)

Switch sensor: mechanical switch SWITCH × 2

proximity switch SENSOR × 2

External dimensions: 147 x 134 x 143.4mm

Product Introduction:

The APL series feedback device is a remote control signal device used for displaying and feedback the valve position in the automatic control system. It is used to output the opening or closing position of the valve as a switch signal (contact), which is received by the programmable controller or searched by the computer. After confirmation, the next program is executed; This product can also be used for important valve interlocking protection and remote alarm indication in automatic control systems. It has two options: mechanical contacts and proximity switches. It is widely used in industries such as petroleum, chemical, pharmaceutical, food, electricity, coal, environmental protection, gold washing, and papermaking.

Product Specifications:
